Waypoint System for Player Placement

Context

We developed a video game project during our third year of Bachelor at SAE Institute of Geneva. Our objective was to create a racing game for Nintendo Switch using a custom C++ Game Engine. Our game "AerRacers" is a multiplayer pod racing game where players can go very fast but must control their speed to avoid crashing.

Player Positions in a Race

An important feature in a multiplayer racing game is knowing player positioning. There are several ways to get it - you could imagine systems using triggers or chunks - but I decided to use a waypoint system for these reasons:

• Uses simple maths (Dot product)
• Easier to implement in our engine

The Waypoint System

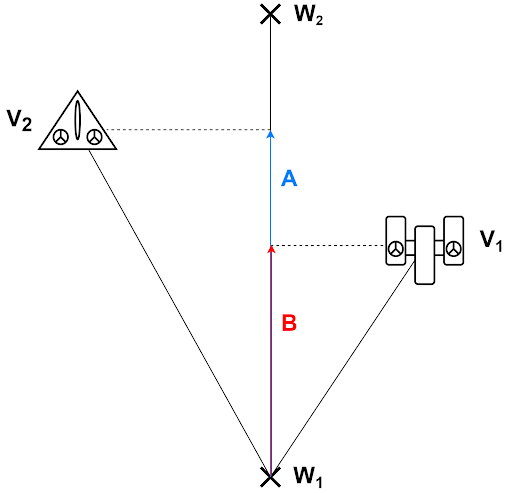

The waypoint system uses a waypoint map in which the player's position is calculated between waypoints. The waypoint manager keeps a target waypoint to calculate the player's position and updates the target by calculating the dot product between the vector Player-Waypoint and the vector Waypoint-NextWaypoint.

Waypoint Data

The waypoint structure contains:

• Position: Position of the waypoint
• Index: Index of the waypoint
• Next Waypoint Index: Index of the next waypoint
• Previous Waypoint Index: Index of the previous waypoint
• Length: Length between this waypoint and the next
• Normalized Next Vector: Normalized vector to the next waypoint

PlayerPositionData

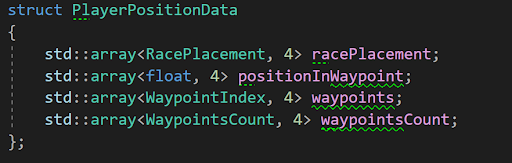

I store every piece of information about player positions in a structure called "PlayerPositionData":

• std::array<RacePlacement, 4> racePlacement - Keeps the players' placement in race
• std::array<float, 4> positionInWaypoint - Keeps the dot product value for each ship
• std::array<WaypointIndex, 4> waypoints - Keeps the current waypoint for each player
• std::array<WaypointsCount, 4> waypointsCount - Keeps the waypoint count for each player

The data is stored in arrays of size 4, corresponding to maximum players.

Waypoint Manager

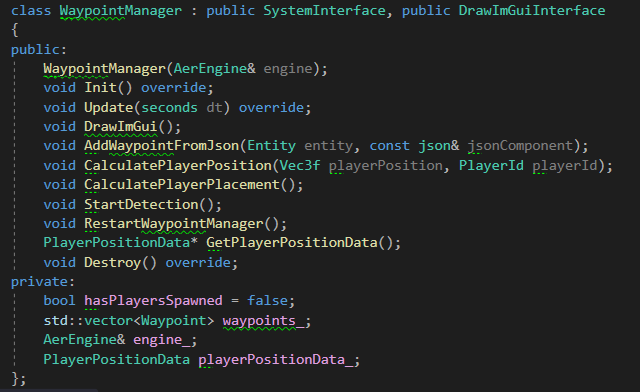

To manage our waypoints, I created a waypoint manager with these key functions:

• AddWaypointFromJson() - Called when loading the scene to get waypoints from JSON
• CalculatePlayerPosition() - Calculates all waypoint position elements
• CalculatePlayerPlacement() - Calculates player placement using position data
• StartDetection() - Starts waypoint detection and gets player data
• RestartWaypointManager() - Restarts manager when returning to main menu

Creating the Waypoints

Before updating player positions, I had to create and store waypoints:

1. Place waypoints on the Unity map
2. Export waypoints with Unity Scene Exporter tool
3. Import waypoints with Neko Scene Importer tool
4. Place waypoints in the Waypoint Manager array
5. Update the waypoint system

Updating PlayerPositionData

To update player position data, we go through these steps:

1. Calculate the vector between ship position and waypoint for each ship
2. Calculate the dot product between this vector and the waypoint's normalized next vector
3. Check the dot product value of each ship
4. Store the value in PlayerPositionData
5. CalculatePlayerPlacement: Check if players have won and compare values to create placement

Special Situations

Checking if the Dot is Negative

At first, when the dot product was negative, I set the target waypoint to the previous one. The problem was that in some situations, the dot could be negative while also higher than the previous waypoint length, causing waypoint changes every frame. To solve this, I added a check when negative to verify if the dot product was higher than the previous waypoint length.

Multiple Paths

Another situation was when the game had multiple paths. I created a boolean to check if the player had multiple next waypoints, then checked both waypoints. I also added a check to see which waypoint the player was nearest to. In the end, we decided not to implement multiple paths since it wasn't necessary for our map.

Problems Encountered

What I Learned

Personal Skills

I was sure it would be much harder to code in C++, but switching between C# and C++ wasn't very hard. I learned that I liked creating systems more than programming gameplay features, because it's easier to know what you're doing when you don't depend too much on other people's code.
